The range
Four fluoropolymers, thirteen products, one factory. Every one extruded from virgin resin and traceable to its batch.
PTFE hosePTFE hose assemblies
Smooth or convoluted PTFE core under SS304, SS316 or textile braid, crimped to BSP, NPT, JIC, DIN or flanged ends.
Virgin PTFE, smooth or corrugated bore
PTFE hoseSS304 braided hose
Smooth-bore PTFE inner with single-wire SS304 braid. SAE 100R14 Type A.
Smooth-bore PTFE, SS304 single-wire braid

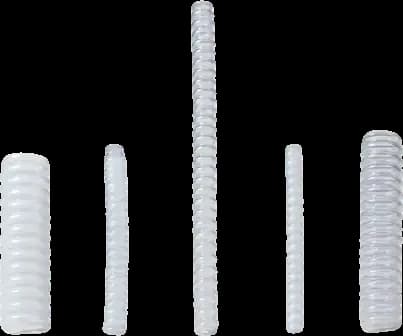

PTFE hoseCorrugated / convoluted hose
Multiply-folded PTFE inner with SS304 braid — about 40% tighter bend radius than smooth bore.
Corrugated PTFE core, SS304 braid
PTFE hoseYarn braided hose
PTFE liner with a high-tenacity textile outer braid for pharma and food service.
PTFE liner, textile braid

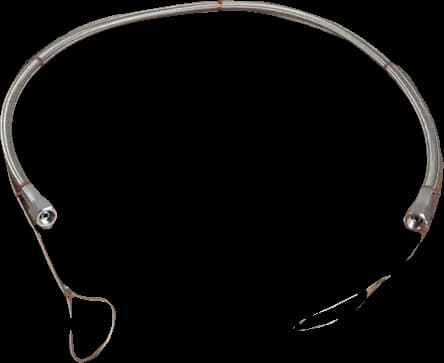

PTFE hoseConductive hose
Carbon-loaded PTFE inner with SS304 braid for fuel, solvent and explosive-atmosphere lines.
Carbon-loaded PTFE, SS304 braid

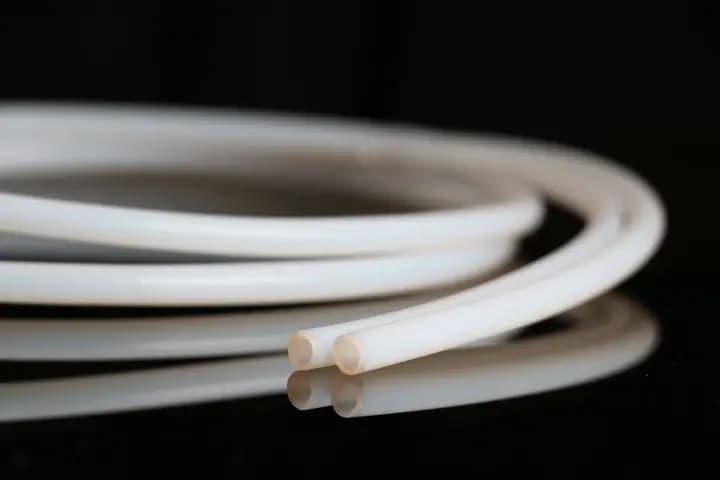

PTFE tubeNatural PTFE tube
Virgin, unfilled PTFE. Near-universal chemical resistance, −200 to +260 °C, smooth non-stick bore.
Virgin PTFE
PTFE tubeColoured PTFE tube
PTFE extruded in solid colour — red, blue, green, yellow and more.
Red, blue, green, yellow and others- PTFE tube
Conductive (antistatic) tube
Compounded with carbon so static drains away instead of building on the bore.
Carbon-filled PTFE - PTFE tube
Abrasion-resistant tube
Resists surface wear from constant contact without giving up PTFE’s chemical inertness.
Modified PTFE

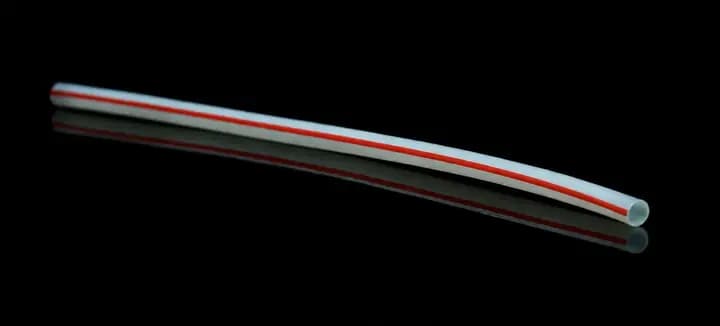

PTFE tubeLined / marked tube
Natural PTFE with a continuous coloured stripe on the outer wall.
Red, blue, black, yellow, green, orange- PTFE tube
Corrugated PTFE tube
Accordion-profile virgin PTFE for tight-radius routing, vibration isolation and dynamic use.
3–10 mm ID
FEPFEP tube
Over 90% light transmission, FDA-grade chemical resistance, melt-processed in long lengths.
−200 °C to +204 °C [CONFIRM: aftubes.com also states +200 °C]
PFAPFA tube
Perfluoroalkoxy tubing to SEMI F57 grade for semiconductor, gas and high-purity duty.
−200 °C to +260 °C- OEM grade
OEM-grade PTFE tube
OEM-grade tube to ASTM D3295 and SAE AS5440, in metric and inch sizes.
ASTM D3295, SAE AS5440
PTFE, FEP or PFA
| PROPERTY | PTFE | FEP | PFA |
|---|---|---|---|
| Service temperature | −200 to +260 °C | −200 to +204 °C [CONFIRM: aftubes.com also says +200 °C] | −200 to +260 °C |
| Clarity | Semi-transparent white | > 90% light transmission | Highly translucent to clear |
| Processing | Ram and paste extrusion | Melt-processed | Melt-processed |
| FDA | 21 CFR 177.1550 | 21 CFR 177.1550 | 21 CFR 177.1550 |
| Pick it for | Widest chemical and temperature range | Seeing the flow, thin walls, long lengths | Purity — SEMI F57, semiconductor and gas |
Not in the table? We’ll extrude it.
Non-standard IDs, ODs, wall thicknesses and lengths, made to drawing. No minimum order for repeat customers.
